Save Work Fluid Bed Dryer Cooler Continuous Vibrating Fluid Bed Dryer For Food Industry

1 Set
MOQ
$5,000.00(>=1 Sets)
preço
Save Work Fluid Bed Dryer Cooler Continuous Vibrating Fluid Bed Dryer For Food Industry
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 220V
Power: 7kw
Dimension(L*W*H): 800*800*1000mm
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 5500
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: India, Spain, None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure vessel, Other
Evaporation Capacity(kg/h): 150
Heating Method: Electric Heating
Material: SUS304, SUS304
Product name: Continuous Vibrating Fluid Bed Dryer
Color: Silver
Advantage: Energy-efficient
Feature: Save Labour
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: India, Spain
Certificação: ISO9001
Informação básica
Certificação: ISO9001
Condições de Pagamento e Envio
Packaging Details: With plastic film and wooden box or as per customer's requirement
Supply Ability: 50 Set/Sets per Month
Descrição de produto
Product Overview

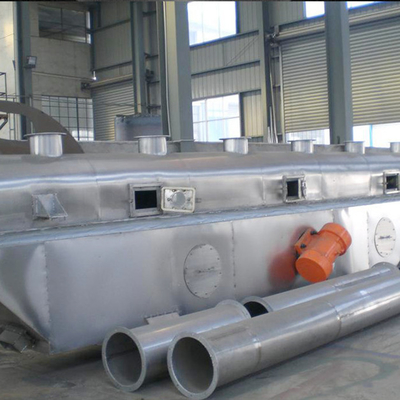

ZLG Series Breadcrumb / Crumb Vibration Fluid Bed Dryer

the material enters the machine from the feed inlet. Under the action of vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. The hot air passes through the fluidized bed upward to exchange heat with the wet material. After the wet air is removed by the cyclone separator, the exhaust air is 1:3 discharged. The dry material is discharged from the discharge inlet
FEATURES AT A GLANCE

1. Height of fluidizing chamber and dust collection is by requirement. 2. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise with long life span. 3. High efficiency, raw material is heated evenly with high efficiency and drying capacity is high. Compared with ordinary dryer, the energy can be saved about 30%. 4. It is good in regulation and wide in suitability. The thickness of raw material, moving speed and the amplitude can be adjusted. 5. It makes minimum damage to the surface of raw material. The equipment can be used for drying easy broken raw materials. The dryer also suitable for drying irregylar shape raw material. 6. The dryer adopt closed operation, protect raw material from cross-contamination, it is in continuous production Principle of Breadcrumb / Crumb Vibration Fluid Bed Dryer Raw material is fed into the dryer from the feeding end and moves forward continuously along under the function of vibration. The hot air penetrate fluid bed plate and dry damp raw material. Then the damp air is exhausted out through cyclone separator and dried raw material is discharged through discharge end.

In order to quota you the right salt fluid bed dryer / fluid bed dryer / Continuous fluid bed dryer, we would like to get the
following information include in your inquiry:

1.What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm

2.What is the capacity per hour you need (kg/h)?
3.What is the initial moisture and final moisture of finished products you require to get?
4.What about the maximum heat temperature of raw material? 5.What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam? 6.Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel? 7.Provide us your country’s electricity information such as phases, voltage, HZ?

8.How about dust collect requirements?

9.Other special requirements?
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Successful Project
Project in China
Project in Turkey
Project in Africa
FAQ
1.Can I use this machine to extract some raw materials? Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used. 7.what is your after-sales service? We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
