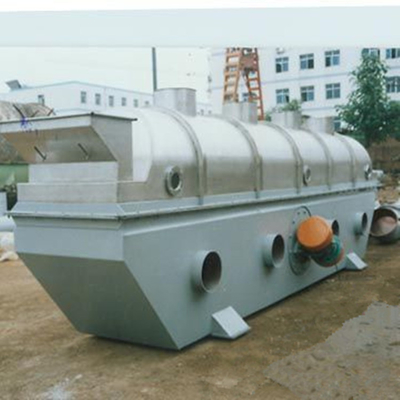

Industry fluid bed dryer, fluid bed dryer drying machine
Brief Introduction of Fluid Bed Dryer Drying Machine:
Vibrating fluid bed dryer drying machine is a kind of reinforced drying device with special purpose. It is usually used for the final drying of materials. Because in the process of drying material flow by help of mechanical vibration, is not only beneficial to the boundary layer turbulence, to strengthen the heat and mass transfer, but also to ensure that the work under the conditions of drying equipment in the relatively steady flow mechanics.
In addition to the excellent drying function, the equipment can be equipped with the process of granulation, cooling, screening and conveying according to the process.
| Dryer Drying Machine Name | fluid bed dryer drying machine |
| Drying Machine Structure | feeder, air filter, induced draft fan, exhaust fan, heat exchanger, vibrating notor, vibrating separating spring, air tube, etc. |
| Dryer Drying Machine Color | color of fluid bed dryer drying equipment is painted as customers' requirements while common is grey or blue. |
| Electric Power |
Voltage: 110V, 220V, 240V, Electric Hertz: 50Hz or 60Hz Electric type: single phase, two-phase(quarter-phase), three phase the voltage, electric hertz and electric type are all designed as customers' requirements because it is defferent betweet countries, like China(mainland), Chile, Egypt, Iraq and Switzerland are 220V. |
| Heating Source |
It is depends on the character of the dry material, different kinds of heating source have different technical requirements. Common heating source is steam heating, electric heating and conduction oil heating. |
| Heating Temperature | adjustable by the electric control cabinet |
| Dryer Drying Machine Capacity | as customers' requirements. This point is releted with the overall size of dryer drying machine. |
| Raw material of Fluid Bed Dryer Drying Equipment |
(1) stainless steel, like SUS 304, SUS 316, SUS Q235A. (2) carbon steel Tips: The thickness of steel is optional according to the specific circumstance of the dryer drying equipment. Common thickness of machine is 3mm, 4mm, 6mm, 8mm, 10mm and 12mm. |
| Services can be Available | free design, free empty debugging, online technical guide, the specific other services you can ask our sales. |
| Price of Dryer Drying Equipment |
The price of dryer drying equipment is according to the specific different technical requirements and overall size. What we offer is the FOB Shanghai price, if indeed, we can also offer the CIF Shanghai and EXW price. |
Working Principle of Fluid Bed Dryer Drying Machine:
The most widely used horizontal vibrating fluidized bed dryer drying machine, the shape and basic structure are similar to the ordinary horizontal fluid bed dryer drying machine.The difference is that the whole body of the vibrating fluid bed is supported on the base by the spring, and the porous plate tilts at the end of the material, and the vibrating motor is mounted on one or both sides of the body.The material depends on the dual action of mechanical vibration and perforated airflow and moves forward in vibration.
The machine vibration force generated by the vibration motor casting, material in a given direction under the action of the exciting force of leap forward, under the bed at the same time the input of the hot air in a fluidized state of material, material particles in contact with the hot air fully, so as to achieve the ideal effect.The material is entered into the machine from the feeding port, and the material is thrown forward and forward in the horizontal direction under the dynamic action.Hot air passes through the fluidized bed and wet material for heat transfer. The wet air is discharged by the exhaust outlet after the dust removal by the cyclone separator. The drying material is discharged from the discharge outlet.
Features Of Fluid Bed Dryer Drying Machine:
1. The object is heated evenly, the heat exchange is sufficient, and the dry intensity is high, which is 30% to 50% less energy than the normal dryer.
2. The vibration source is driven by vibrating motor, which is running in balance, convenient for maintenance, low noise and long life.
3. Uniform fluidization, no dead space and blow-through phenomenon can obtain uniform drying, cooling and humidifying products.
4. Adjustable, suitable for face width, thickness of material layer and moving speed in the machine, and full amplitude change can be achieved without level adjustment.
5. Small damage to material surface can be used for drying of fragile materials, and it will not affect work effect when the particles are irregular.
6. Adopt fully enclosed structure, effectively prevent cross infection between materials and outside air, and clean the working environment.
7. Vibration helps to disperse materials, such as choosing the right vibration parameters, the materials that are easy to reunite or generate gutter flow in ordinary fluidized bed can be fluidized and dry.
8. Due to the unheated backmixing, the airflow rate is lower than the ordinary fluidized bed, and it has little damage to the material particles.In the process of drying, it is desirable to not destroy the crystalline form, or the material that has requirements on the surface luminosity of the particle.
Application Field:
1. Pharmaceutical industry: various kinds of pellets, boric acid, borax, phenylenol additives, etc.
2. Food construction industry: liquor, MSG, granulated sugar, salt, slag, seeds, etc.
3. Suitable for drying, cooling and humidifying operation of various granular materials, such as chemical, pharmaceutical, food, beverage, seeds and slag, etc.
4. Other: mineral powder, metal powder, steel sand, bait, furfural, silica sand, toner, pottery, glutamate, quartz, abrasive material, fertilizer, herbage, bone powder, mica asbestos, etc.
Q: How can I visit your factory ?
A: Our company is near Shanghai, it takes about 1 hour to get Changzhou. Or if indeed, we can go to visit you inShanghai.
Q: What’s the quality of your products ?
A: Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem ?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment ?
A: Our warranty period is one year generally.
Q: What is your payment term ?
A: Our usual payment term is: 30% TT in advance, and 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight ?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
In order to quote you the right drying machine equipment with best price, we would like to get the following information include in your inquiry:
1. What is the raw material? (Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.)
2. What is the capacity per hour you need (kg/h)?
3. What is the initial moisture and final moisture of finished products you require to get?
4. What about the maximum heat temperature of raw material?
5. What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
6. Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
7. Provide us your country’s electricity information, such as phases, voltage, HZ?
8. How about dust collect requirements?
9. Other special requirements.
