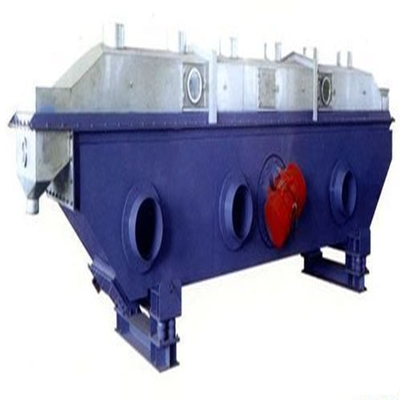

Medicine Curing Commercial Use Horizontal Continuous Vibrating Fluid Bed Dryer Drying Machine For Sale

Fluid bed dryer drying machine

Brief Introduction of Fluid Bed Dryer Drying Machine:

Vibrating fluid bed dryer drying machine is a kind of reinforced drying device with special purpose. It is usually used for the final drying of materials. Because in the process of drying material flow by help of mechanical vibration, is not only beneficial to the boundary layer turbulence, to strengthen the heat and mass transfer, but also to ensure that the work under the conditions of drying equipment in the relatively steady flow mechanics.

In addition to the excellent drying function, the equipment can be equipped with the process of granulation, cooling, screening and conveying according to the process.

Working Principle of Fluid Bed Dryer Drying Machine:

The machine vibration force generated by the vibration motor casting, material in a given direction under the action of the exciting force of leap forward, under the bed at the same time the input of the hot air in a fluidized state of material, material particles in contact with the hot air fully, so as to achieve the ideal effect.

The material is entered into the machine from the feeding port, and the material is thrown forward and forward in the horizontal direction under the dynamic action.Hot air passes through the fluidized bed and wet material for heat transfer. The wet air is discharged by the exhaust outlet after the dust removal by the cyclone separator. The drying material is discharged from the discharge outlet.

Flow Chart of Fluid Bed Dryer Drying Machine:

Features Of Fluid Bed Dryer Drying Machine:

• The object is heated evenly, the heat exchange is sufficient, and the dry intensity is high, which is 30% to 50% less energy than the normal dryer.
• The vibration source is driven by vibrating motor, which is running in balance, convenient for maintenance, low noise and long life.
• Uniform fluidization, no dead space and blow-through phenomenon can obtain uniform drying, cooling and humidifying products.
• Adjustable, suitable for face width, thickness of material layer and moving speed in the machine, and full amplitude change can be achieved without level adjustment.
• Small damage to material surface can be used for drying of fragile materials, and it will not affect work effect when the particles are irregular.
• Adopt fully enclosed structure, effectively prevent cross infection between materials and outside air, and clean the working environment.
• Vibration helps to disperse materials, such as choosing the right vibration parameters, the materials that are easy to reunite or generate gutter flow in ordinary fluidized bed can be fluidized and dry.
• Due to the unheated backmixing, the airflow rate is lower than the ordinary fluidized bed, and it has little damage to the material particles.In the process of drying, it is desirable to not destroy the crystalline form, or the material that has requirements on the surface luminosity of the particle.

Application Field:

Pharmaceutical industry: various kinds of pellets, boric acid, borax, phenylenol additives, etc.

Food construction industry: liquor, MSG, granulated sugar, salt, slag, seeds, etc.

Suitable for drying, cooling and humidifying operation of various granular materials, such as chemical, pharmaceutical, food, beverage, seeds and slag, etc.

Other industry products: mineral powder, metal powder, steel sand, bait, furfural, silica sand, toner, pottery, glutamate, quartz, abrasive material, fertilizer, herbage, bone powder, mica asbestos, etc.
