Características

Especificações

Type: Fluid Bed Drying Equipment

Application: Medicine Processing, Chemicals Processing, Food Processing

Condition: New

Voltage: 380V

Power: 800*2-3000*2

Dimension(L*W*H): 0.9-9M2

Key Selling Points: High Productivity

Warranty: 1 Year

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location: None

Marketing Type: Ordinary Product

Machinery Test Report: Not Available

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor

Product Name: Rectilinear Vibrating Fluid Bed Dryer

After-sales Service Provided: Engineers available to service machinery overseas, Online support, Video technical support

Temperature of air in Â°C: 70~140

Temperature of air out Â°C: 40~70

Material: Stainless Steel

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

Certificação: CE

Informação básica

Certificação: CE

Condições de Pagamento e Envio

Packaging Details: plywood Case

Supply Ability: 20 Set/Sets per Month

Descrição de produto

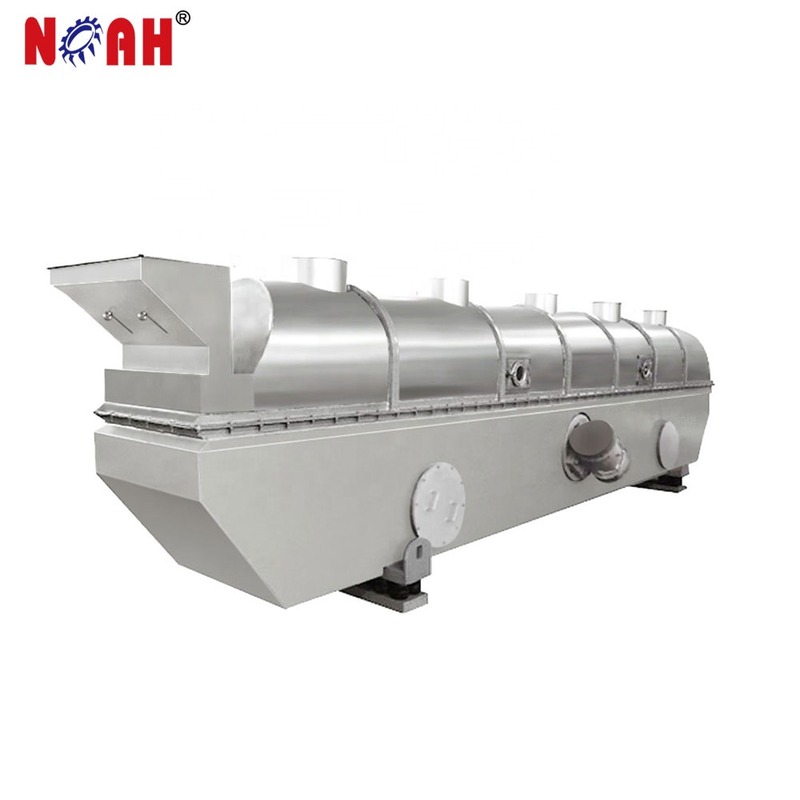

ZLG Series Rectilinear Vibrating Fluid Bed Dryer

Product Description

The ZLG Series Rectilinear Vibrating Fluid Bed Dryer is suitablity in chemical industry,light industry, pharmaceutical, food, plastic, oil, slang, salt, sugarand so on, for drying, cooling and weting.

Features:

The vibration is created by motorl is stable in operation and convenient in maintenance, low noise and long life.
High effection, raw material is heates evenly and heated evenly and heat exdhange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
It is good in regulation and wide in suitablity. Tje thickness of raw material layer and movable speed inside the maching and the amolitude can be adjusted through continous variable speed.
It is small for danaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have anomaly shape.
A fully enclosed structure, effectively prevent the material and the air space between the cross infection of the working environment clean.
You can string multi-set to raised capacity of raw materials, such as polyacrylamide.

Model	Fluidized Bed Area m2	Temperature of air in °C	Temperature of air out °C	Capacity of vaporize moisture Kg/h	Vibration Motor
Model	Fluidized Bed Area m2	Temperature of air in °C	Temperature of air out °C	Capacity of vaporize moisture Kg/h	Model	Power(Kw)
ZLG3×0.30	0.9	70~140	40~70	20~35	NYS8-6	0.75×2
ZLG4.5×0.30	1.35			35~50	NYS10-6	0.75×2
ZLG4.5×0.45	2.025			50~70	NYS15-6	1.1×2
ZLG4.5×0.60	2.7			70~90	YZS15-6
ZLG6×0.45	2.7			80~100	NYS15-6
ZLG6×0.60	3.6			100~130	NYS20-6	1.5×2
ZLG6×0.75	4.5			120~170	NYS20-6	2.5×2
ZLG6×0.90	5.4			140~170	NYS30-6	2.2×2
ZLG7.5×6.0	4.5			130~150	NYS30-6	2.2×2
ZLG7.5×0.75	5.625			150~180	NYS40-6	3.0×2
ZLG7.5×0.9	6.75			160~210	NYS-6	3.0×2
ZLG7.5×1.2	9			200~280	NYS50-6	3.7×2
ZLG7.5×1.5	11.25			230~330	NYS50-6	3.7×2
ZLG8×1.8	14.4			290~420	NYS75-6	5.5×2

Packaging & Shipping

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship ZLG Series Rectilinear Vibrating Fluid Bed Dryer by sea way.

Our Services

Documents:
Operational manual with English will be given at the time of dispatch of machine.

Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.

Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).

If you need, we can dispatch our engineers to your country to install and train machines.
